REDONDA BASIC

High efficiency pellet stove

★★★★

Mod. S8: 160 m

Mod. M10: 200 m

Mod. L12 : 230 m

Mod. L12C: 230 m

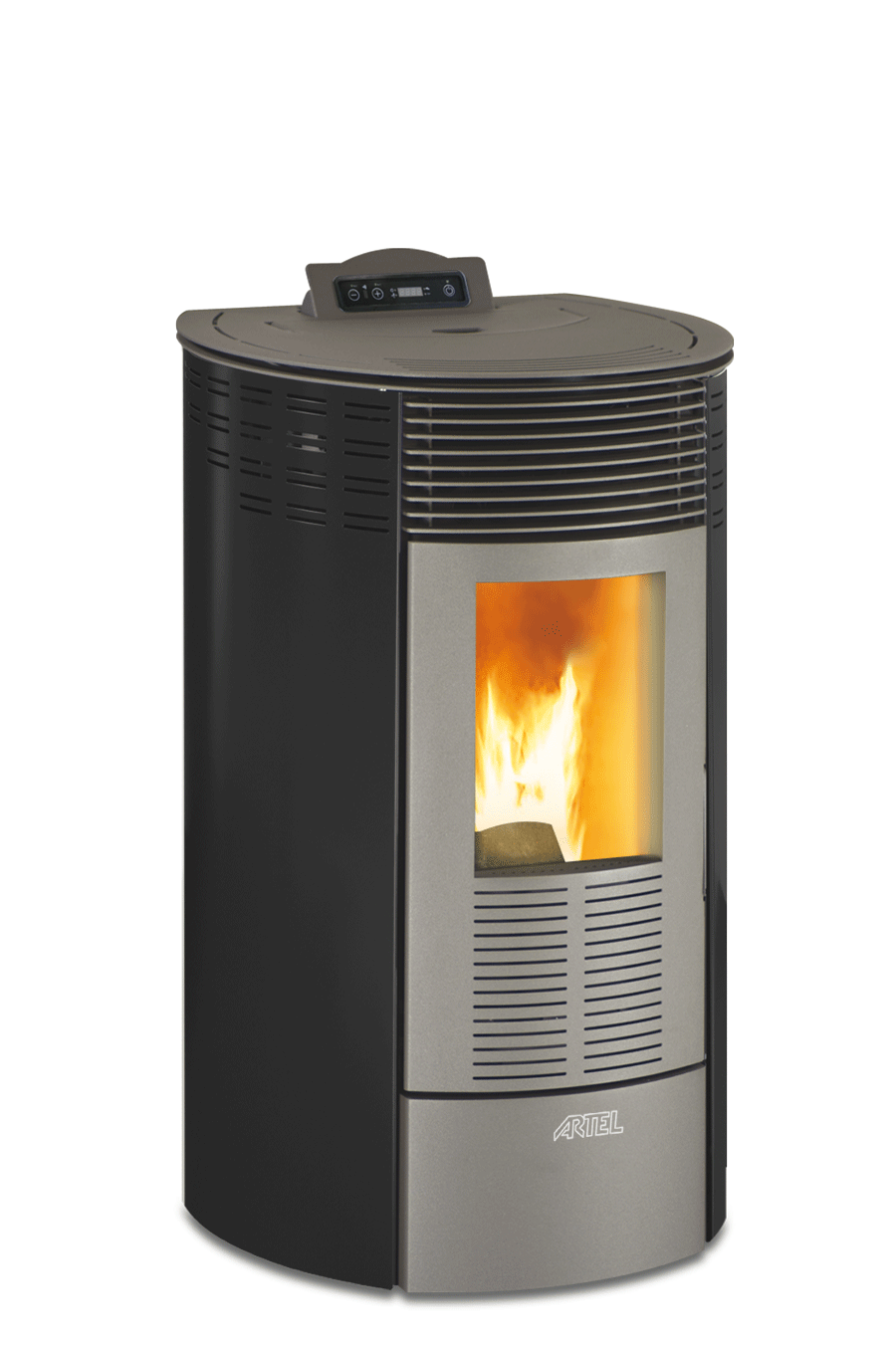

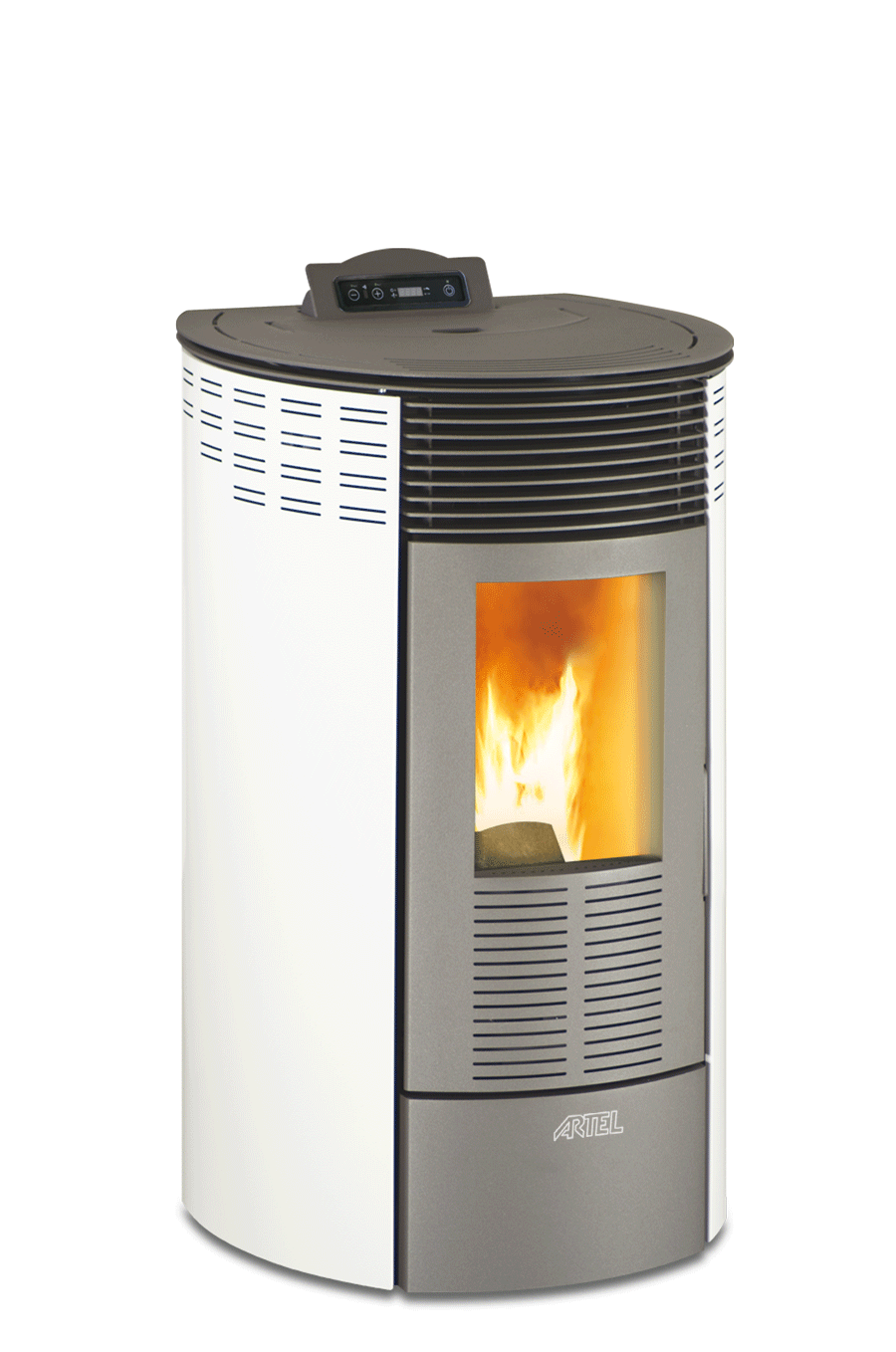

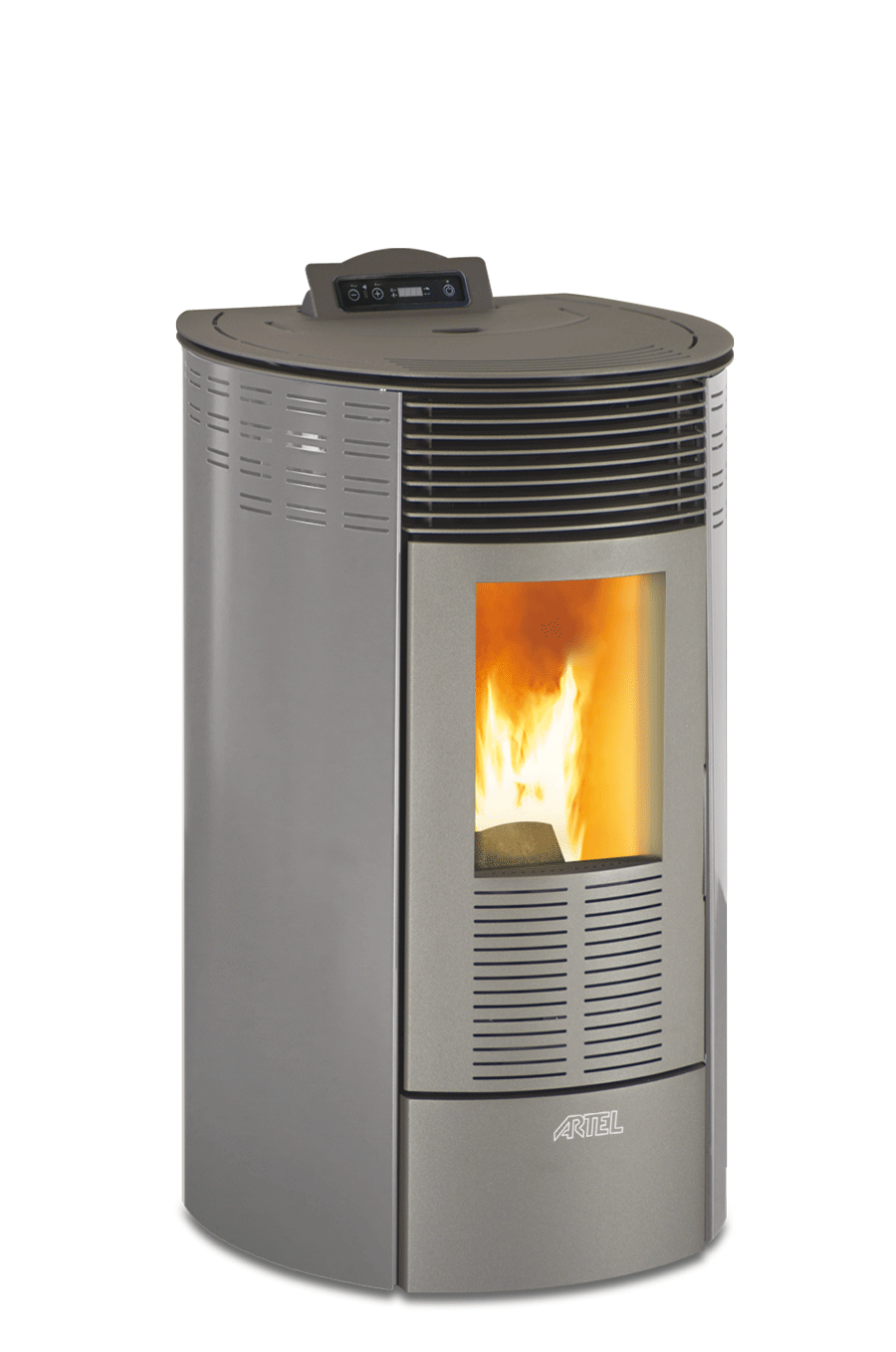

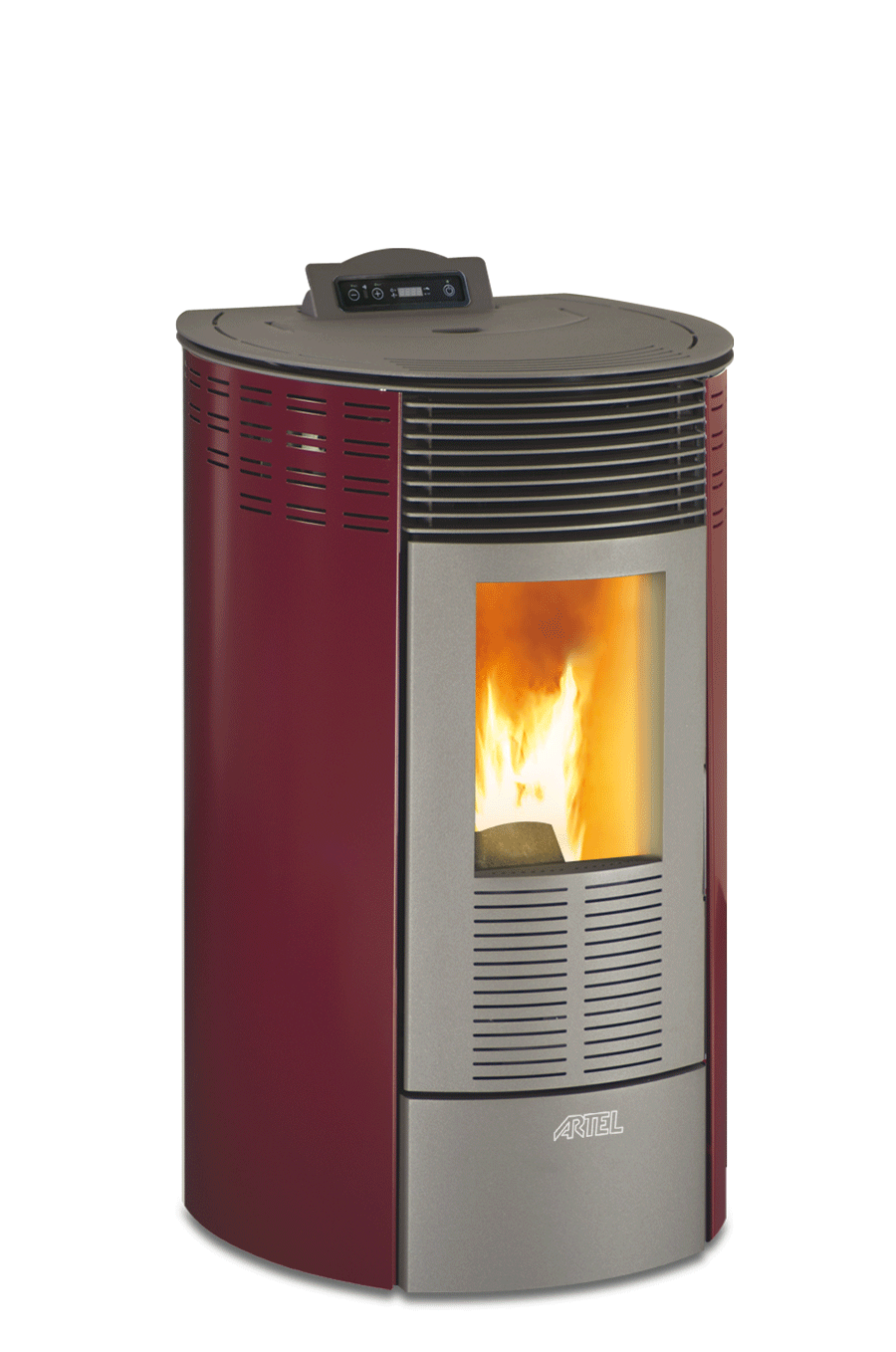

  • 4 colors available

  • Round design

  • Also Ducted

  • Remote control

  • Wi-fi Optional

Tecnical data S8 M10 L12 L12 C
Heat input (max – min) kW 7,2 -3,1 8,87 – 2,84 10,1 – 2,84 10,1 – 2,84
Nominal heat output (max – min) kW 6,3 – 2,9 8,2 – 2,64 9,05 – 2,64 9,05 – 2,64
Efficiency (max – min) % 94,4 – 89,5 92,70 – 90,50 92,7 – 89,53 92,7 – 89,53
Tank capacity Lt – Kg 20 – 13 20 – 13 20 – 13 20 – 13
Autonomy (max – min) H 22 – 9 22 – 7 22 – 6 22 – 6
Dimensions (W x D x H) MM 525 x 510 x 866 525 x 510 x 866 525 x 510 x 956 525 x 510 x 956
Net weight Kg 78 78 79 81
All data and pictures are indicative and provisional and subject to change without notice.
The value of the volume refers to isolated buildings and it’s only indicative.
