Project Description

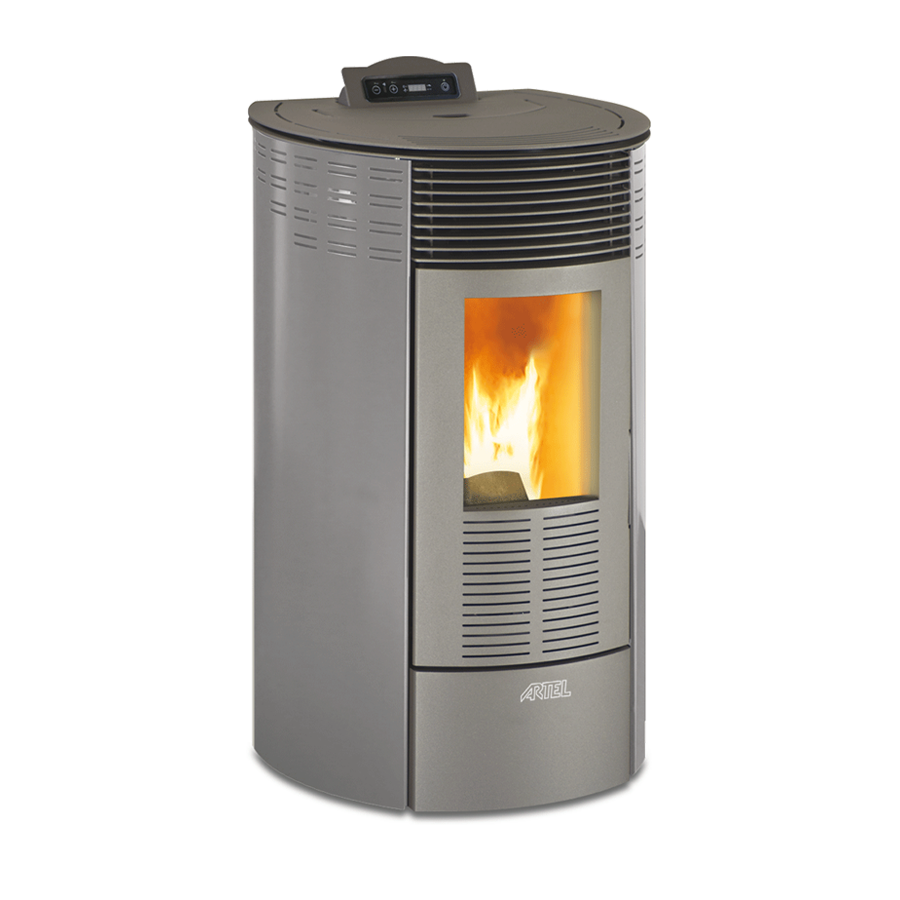

Redonda Basic S8/M10/L12

High efficiency pellet stove

Mod. S8: 160 m³
Mod. M10: 200 m³
Mod. L12: 230 m³

The stove combines modern design and classical forms to make unique the location in which it operates; it is particularly indicated for a corner place with the possibility of ducting in the model 12, this stove is the perfect combination of design and professionalism.

  • Remote control

  • New LCD Display

  • WiFi optional

Tecnical data S8 M10 L12
Heat input (max – min) kW 7,2 -3,1 8,87 – 2,84 10,1 – 2,84
Nominal heat output (max – min) kW 6,3 – 2,9 8,2 – 2,64 9,05 – 2,64
Efficiency (max – min) % 94,4 – 89,5 92,70 – 90,50 92,7 – 89,53
Tank capacity Lt – Kg 20 – 13 20 – 13 20 – 13
Autonomy (max – min) H 22 – 9 22 – 7 22 – 6
Dimensions (W x D x H) MM 470 x 473 x 1002 5470 x 473 x 1002 470 x 473 x 1011
Net weight Kg 78 78 79
All data and pictures are indicative and provisional and subject to change without notice.
The value of the volume refers to isolated buildings and it’s only indicative.
