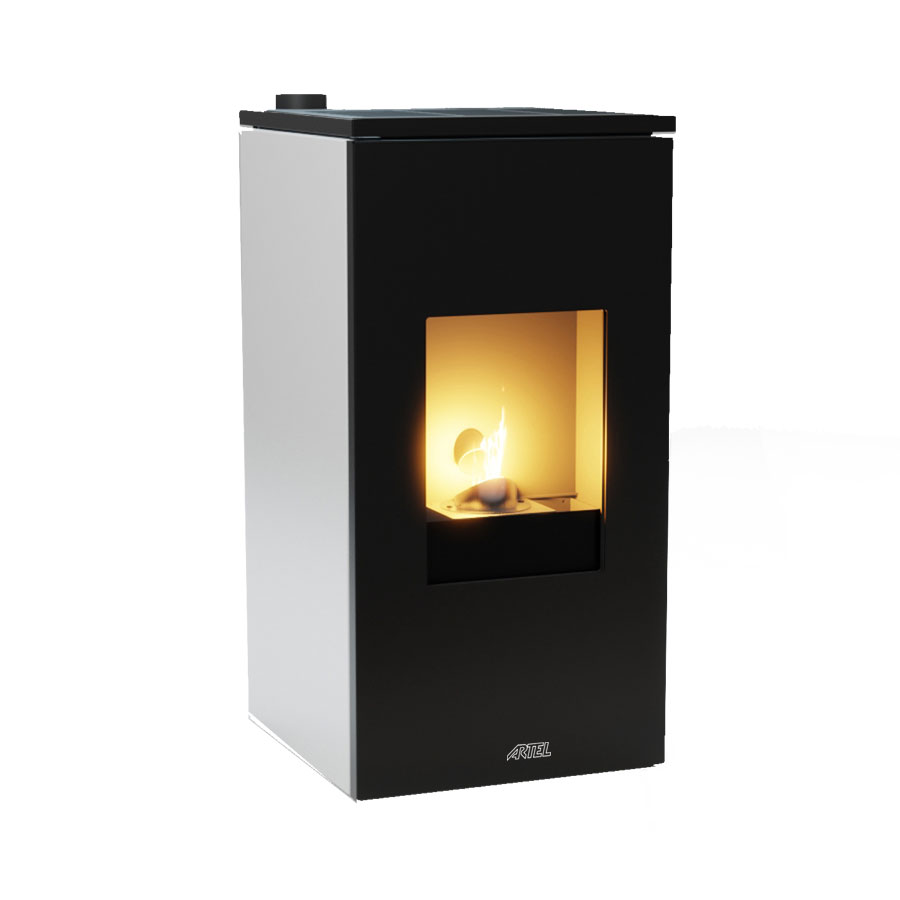

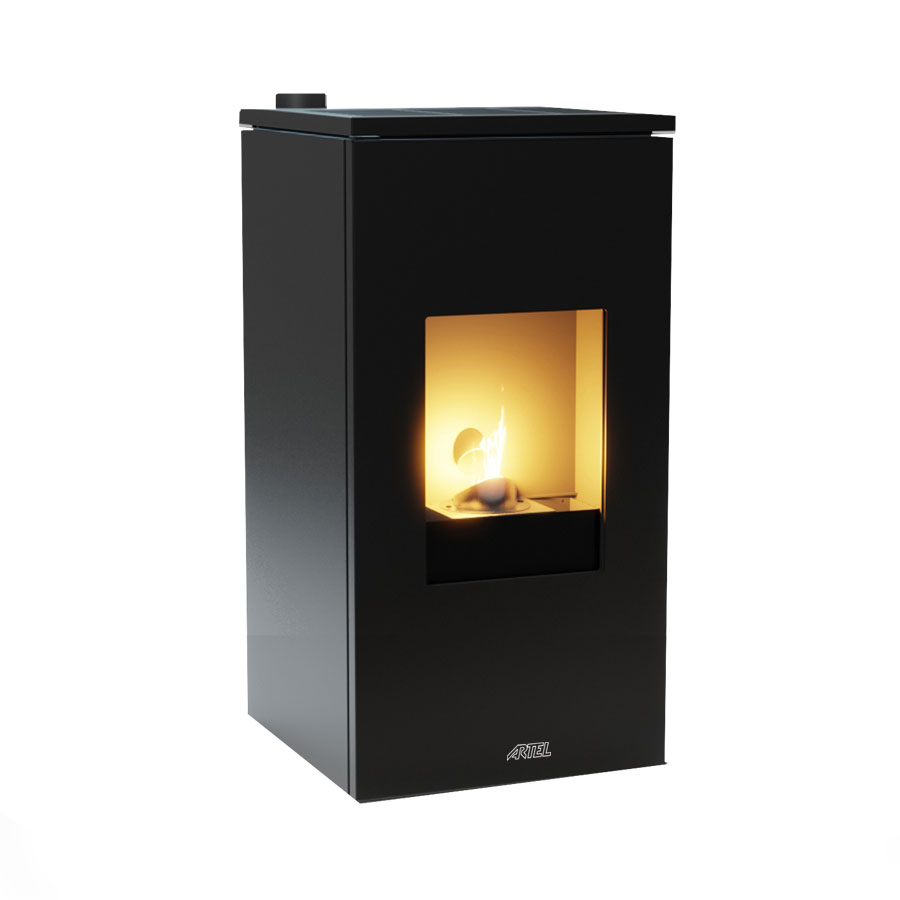

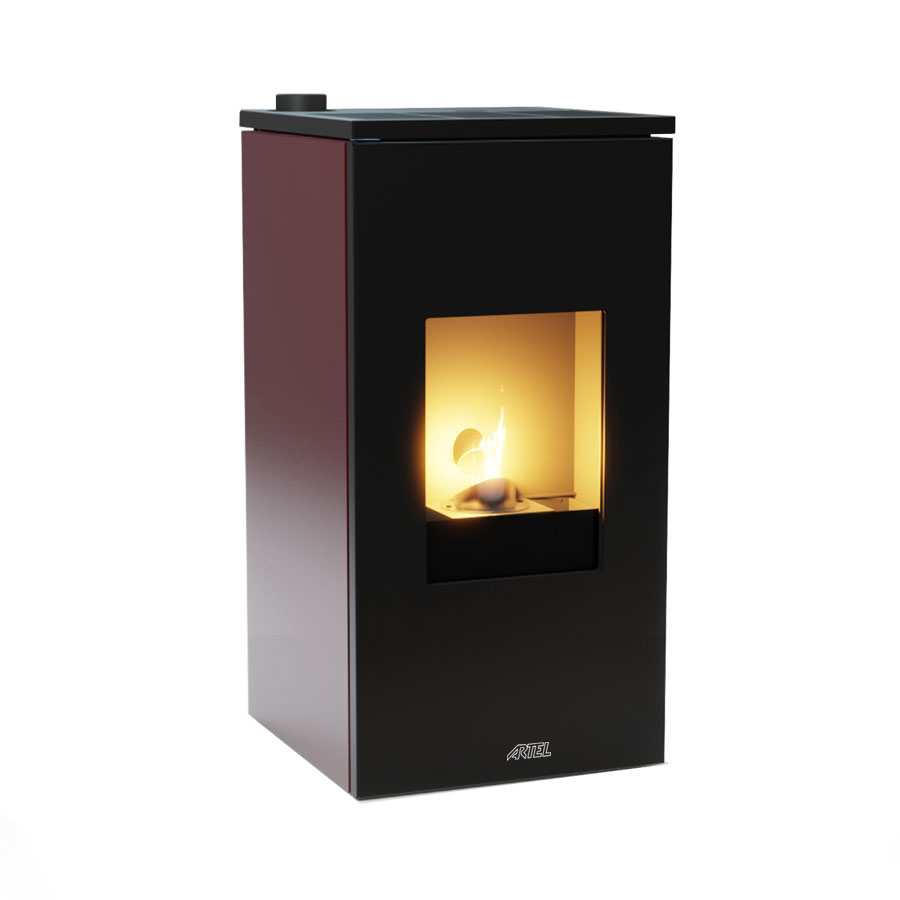

Futura

MINIMAL BUT REALLY SPECIAL

also ducted

★★★★

Mod. 7: 180 m3

Mod. 7C: 200 m3

Mod. 9: 220 m3

Mod. 9C: 240 m3

Mod. 11: 270 m3

Mod. 11C: 290 m3

  • Also ducted (7C – 9C – 11C)

  • New body

  • New palming: replaying the display on board machine

  • Design minimal

  • Double aesthetic door

  • Upper smoke outlet

  • 95% efficiency

  • Silent

Technical Data 7 9 11
Heat input (max – min) kW 7,9 – 3,9 9,6 – 3,9 11,8 – 3,9
Nominal heat output (max – min) kW 7,5 – 3,7 9,0 – 3,7 11 – 3,7
Efficiency (max – min) % 95-95 95 – 94,2 95 – 93
Tank capacity Lt – Kg 16 16 16
Autonomy (max – min) H 8 – 20 8 – 20 8 – 20
Dimensions (W x D x H) MM 475 x 490 x 940 475 x 490 x 940 475 x 490 x 1000
Net weight Kg 100 100 110
Technical Data 7C 9C 11C
Heat input (max – min) kW 7,9 – 3,9 9,6 – 3,9 11,8 – 3,9
Nominal heat output (max – min) kW 7,5 – 3,7 9,0 – 3,7 11 – 3,7
Efficiency (max – min) % 95-95 95 – 94,2 95 – 93
Tank capacity Lt – Kg 16 16 16
Autonomy (max – min) H 10 – 20 8 – 20 8 – 20
Dimensions (W x D x H) MM 475 x 490 x 940 475 x 490 x 940 475 x 490 x 100
Net weight Kg 100 100 110
Dimensional
Certifications
Manual
Energy label
