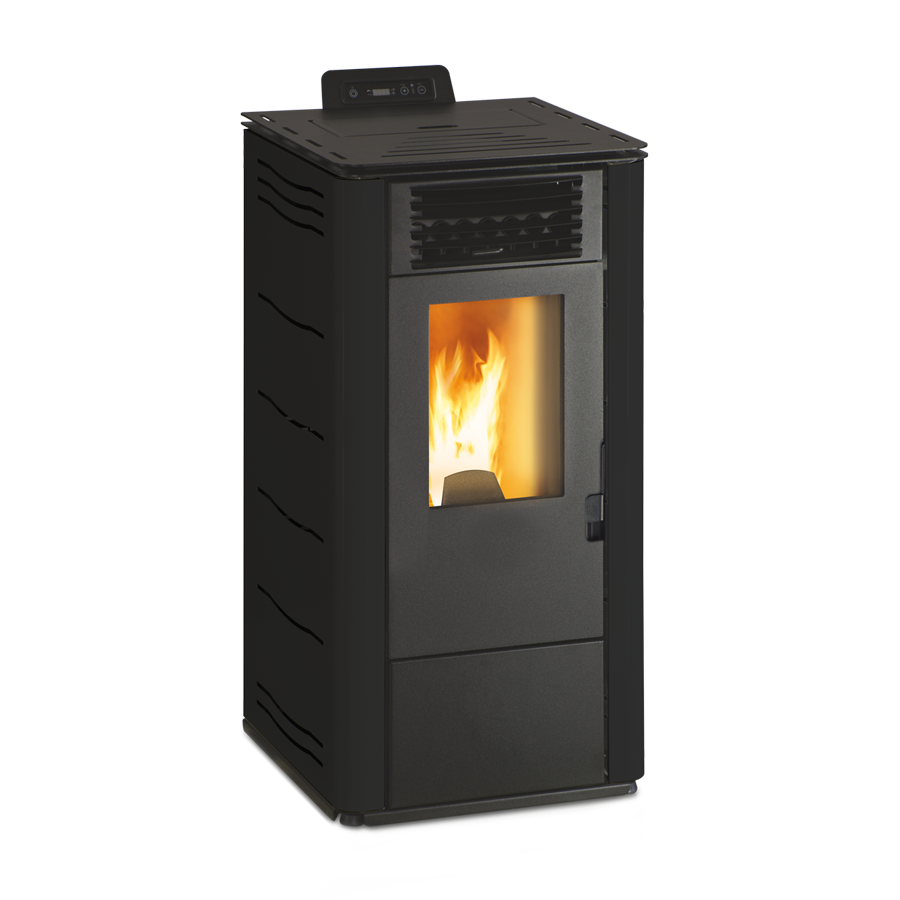

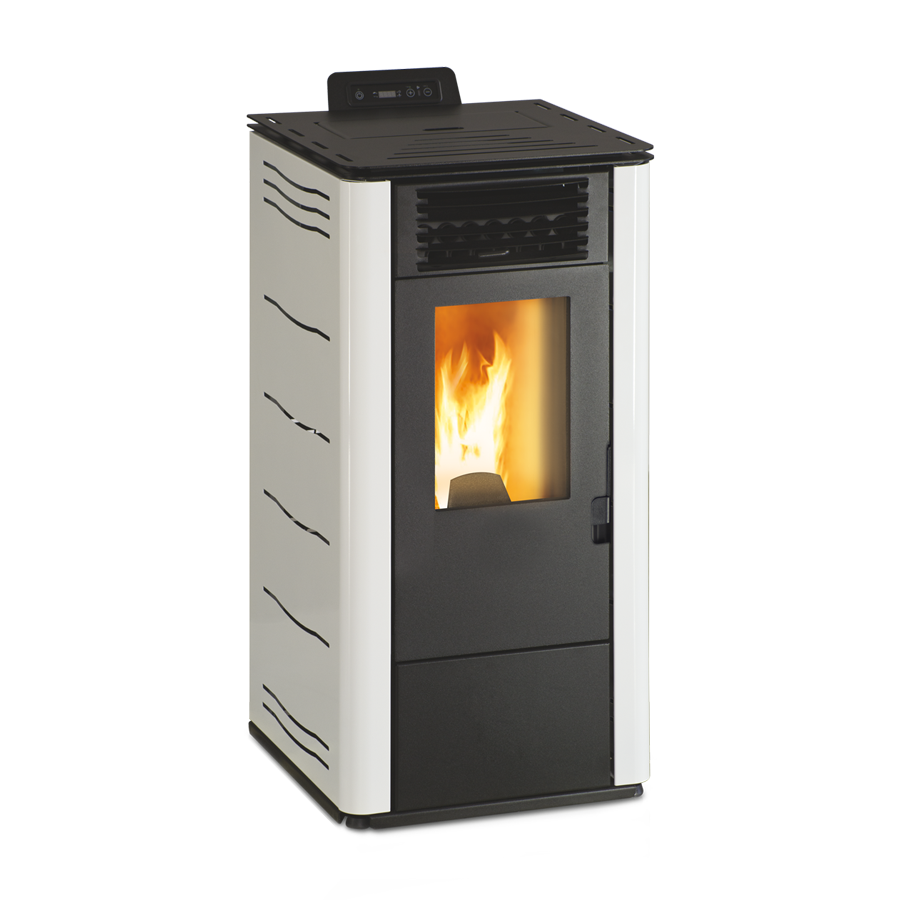

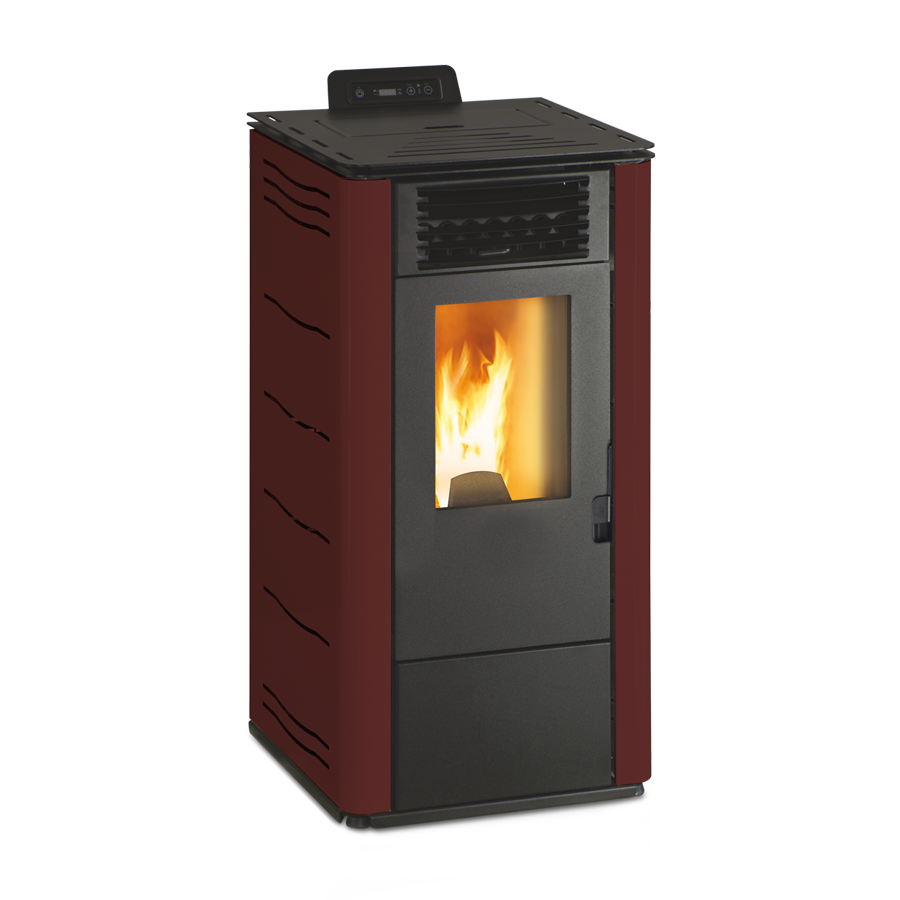

CLASS STELL
High efficiency pellet stove

★★★★
Mod. S: 160 m3
Mod. M: 200 m3
Mod. L: 230 m3
Mod. LC: 230 m3
Also ducted
New display LCD
Remote control
WiFi Optional



Technical Data | S | M | L | |
Heat input (max – min) | kW | 7,2 – 3,1 | 8,87 – 2,84 | 10,1 – 2,84 |
Nominal heat output (max – min) | kW | 6,3 – 2,9 | 8,02 – 2,64 | 9,5 – 2,64 |
Efficiency (max – min) | % | 94,4 – 89,5 | 92,70 – 90,50 | 92,7 – 89,53 |
Tank capacity | Lt – Kg | 20 – 13 | 20 – 13 | 20 – 13 |
Autonomy (max – min) | H | 100 – 300 | 22 – 7 | 22 – 6 |
Dimensions (W x D x H) | MM | 470 x 473 x 1002 | 470 x 473 x 1002 | 470 x 473 x 1011 |
Net weight | Kg | 78 | 78 | 79 |
Technical Data | L | |
Heat input (max – min) | kW | 10,1 – 2,84 |
Nominal heat output (max – min) | kW | 9,5 – 2,64 |
Efficiency (max – min) | % | 92,7 – 89,53 |
Tank capacity | Lt – Kg | 20 – 13 |
Autonomy (max – min) | H | 22 – 6 |
Dimensions (W x D x H) | MM | 470 x 473 x 1011 |
Net weight | Kg | 81 |
